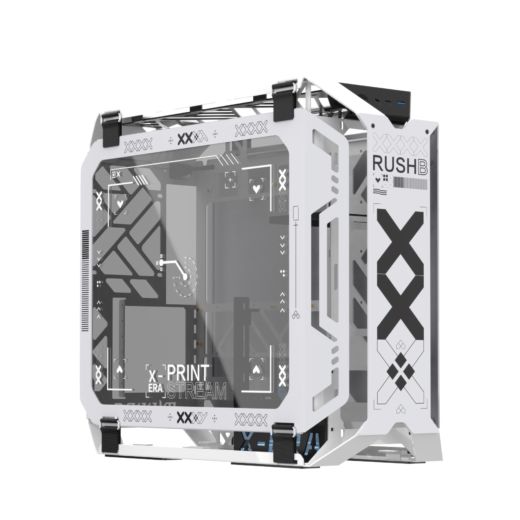

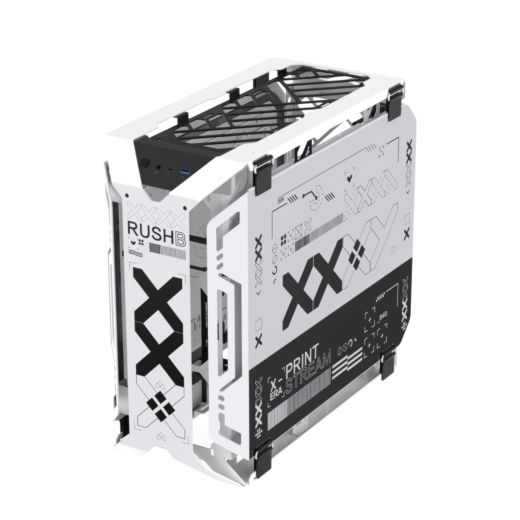

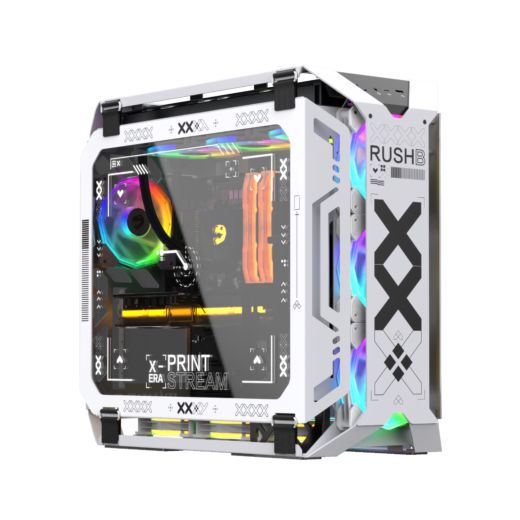

X-Era-PLUS

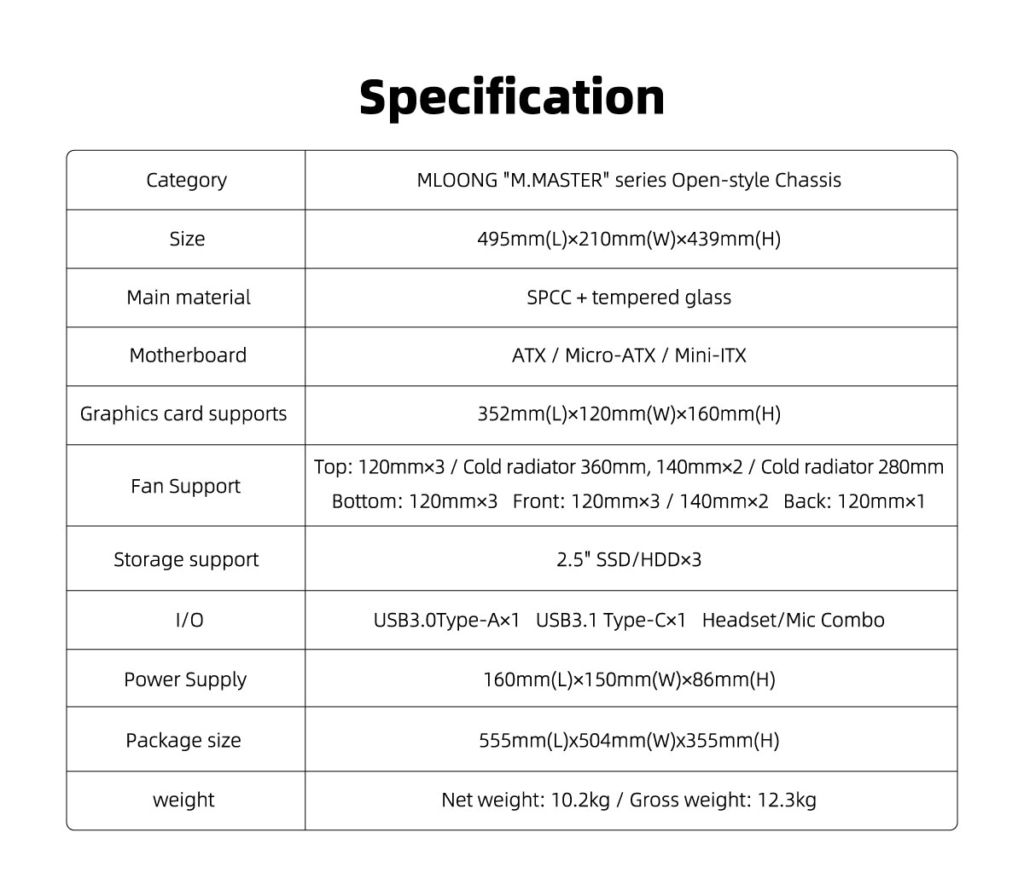

Category

MLOONG "M.MASTER" series Open-style Chassis
Size

495mm (L) × 210mm (W) × 439mm (H)
Main material

SPCC + tempered glass

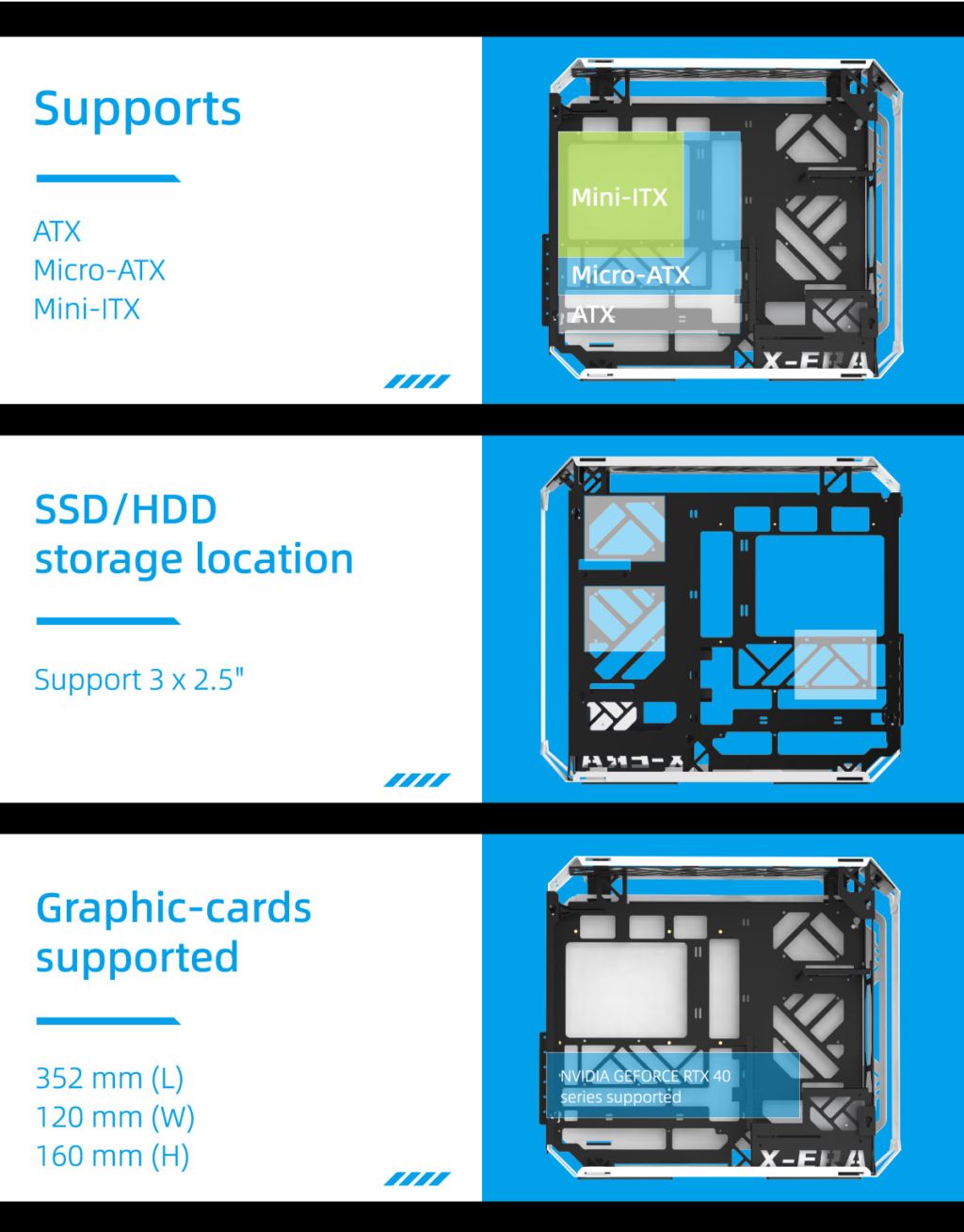

Motherboard support

ATX / Micro-ATX / Mini-ITX
Graphics card supported

352mm (L) × 120mm (W) × 160mm (H)

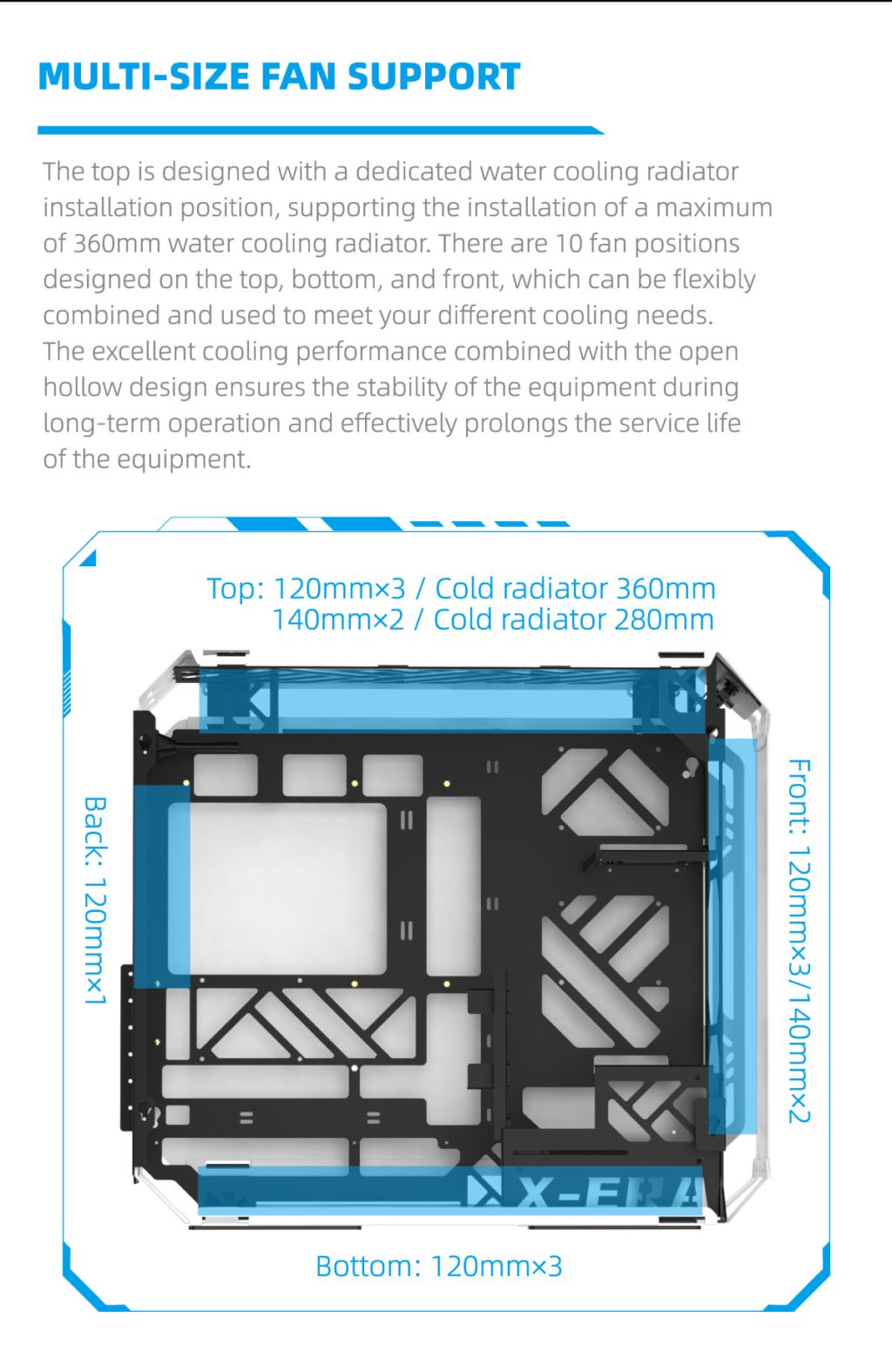

Fan support

Top: 120mm × 3 / Cold radiator 360mm, 140mm × 2 / Cold radiator 280mm Bottom: 120mm × 3 Front: 120mm × 3 / 140mm × 2 Back: 120mm × 1
Storage support

2.5" SSD/HDD × 3

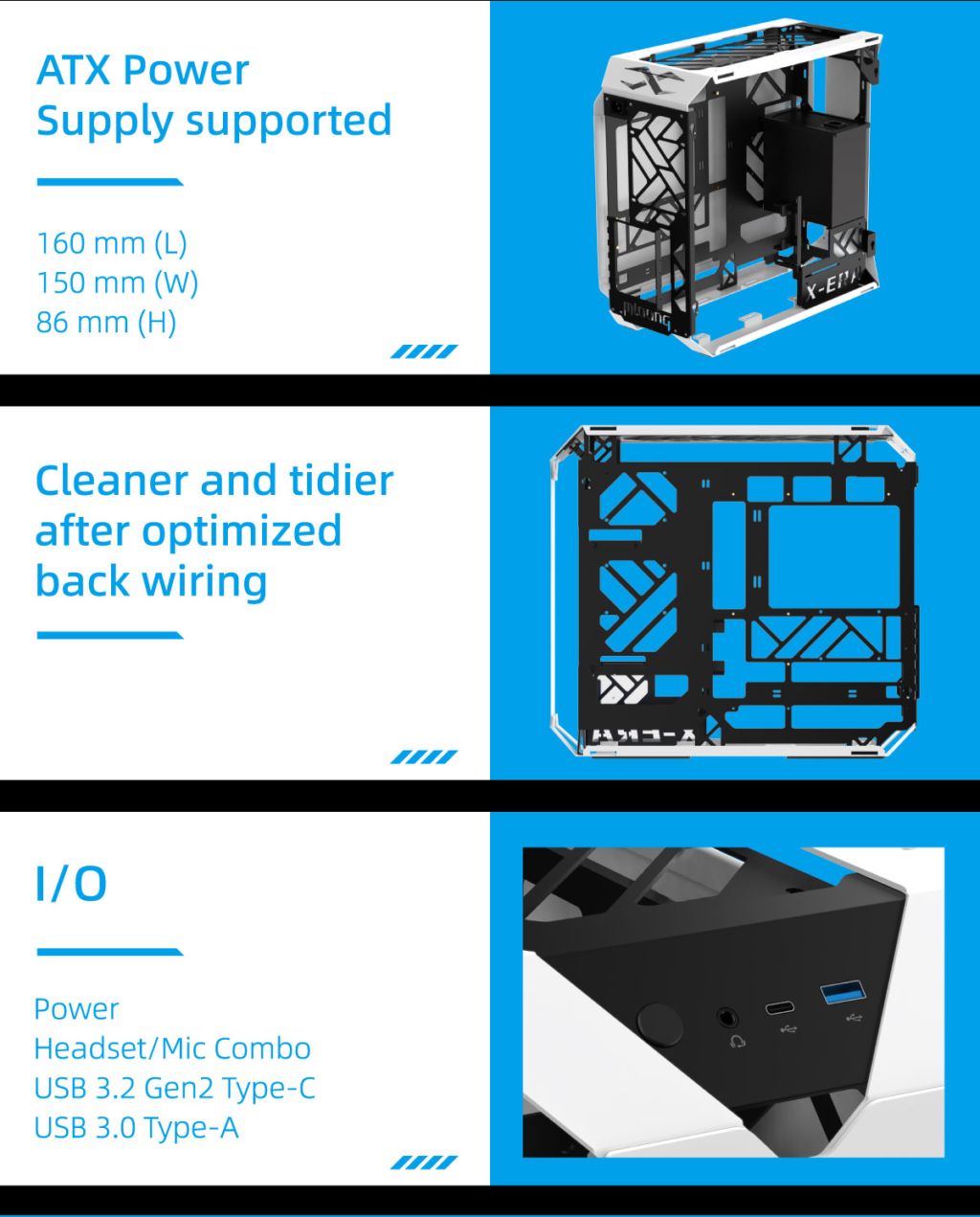

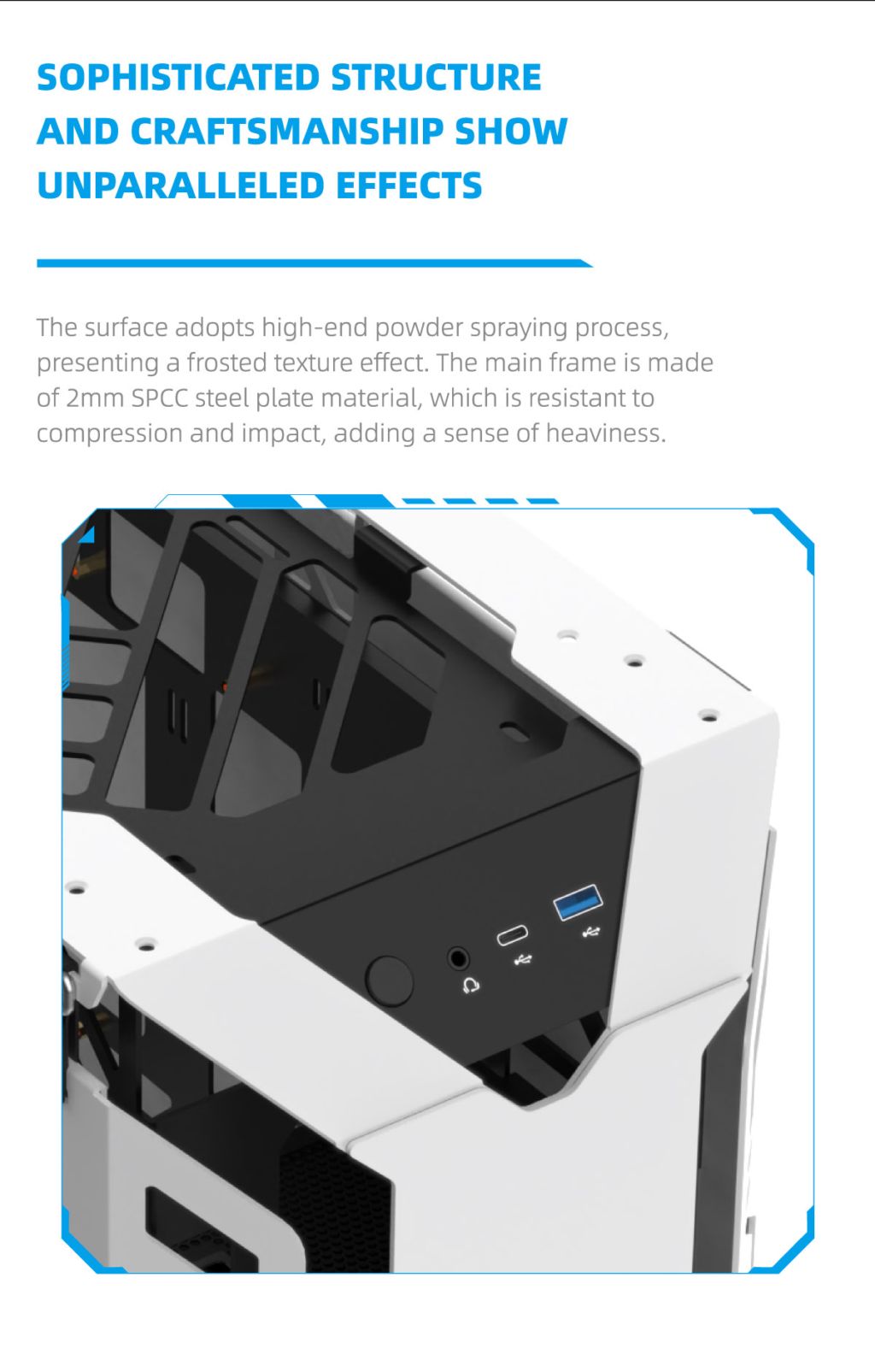

Functional Ports

USB3.0 Type-A × 1， USB3.1 Type-C × 1， Headset/Mic Combo
Power support

160mm (L) × 150mm (W) × 86mm (H)
Package Size

555mm (L) × 504mm (W) × 355mm (H)
Weight

Net weight: 10.2kg / Gross weight: 12.3kg
